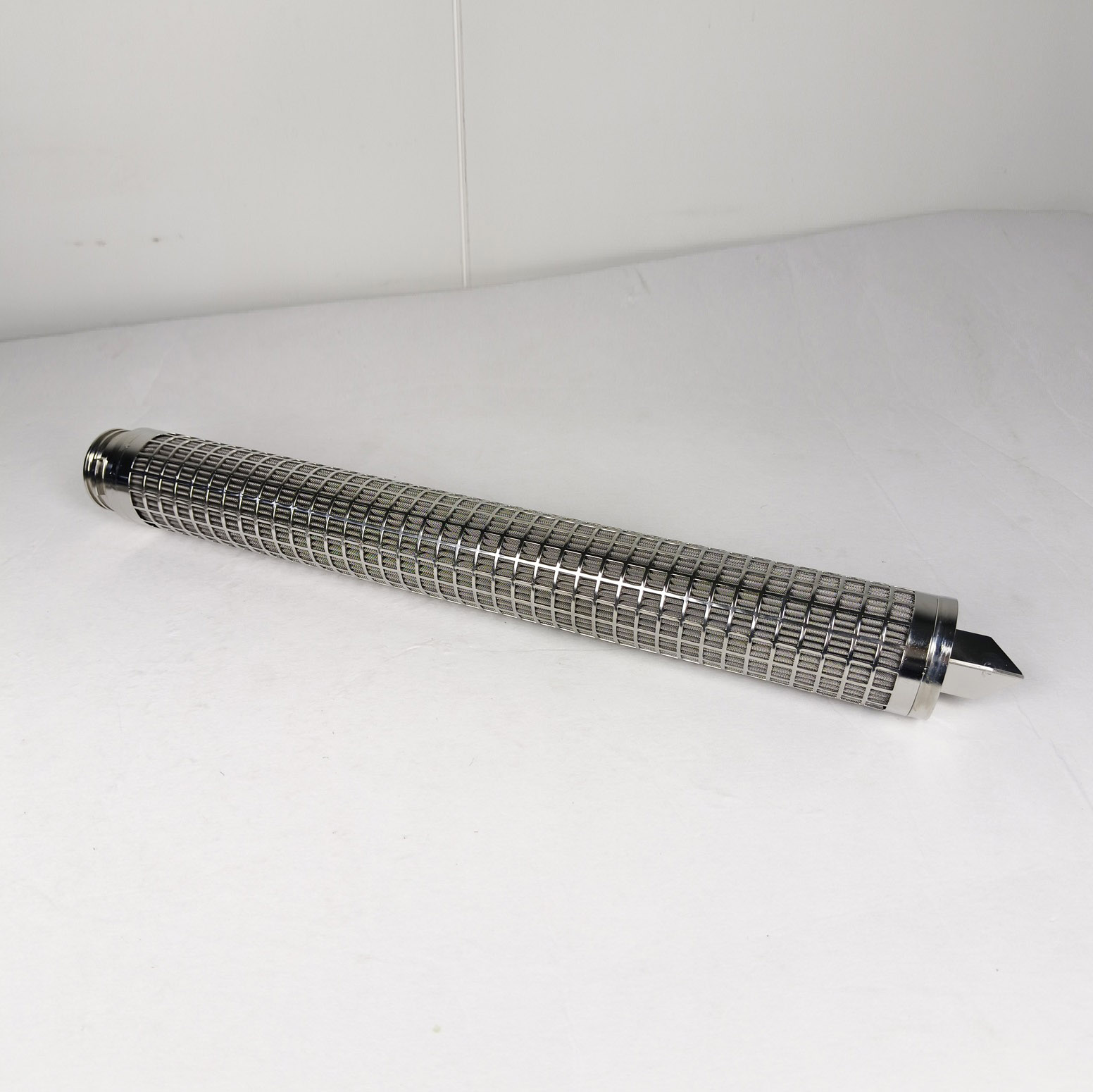

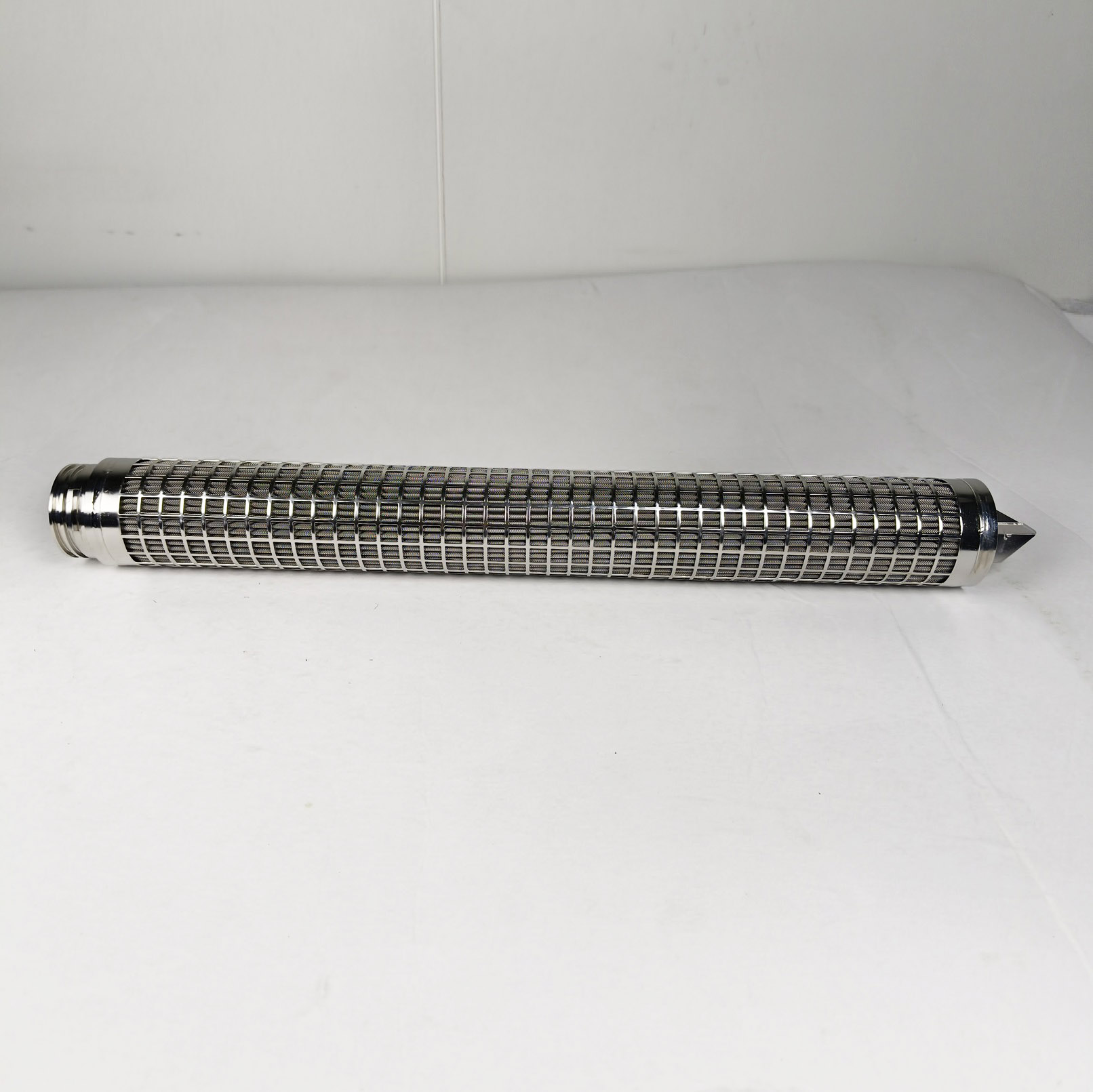

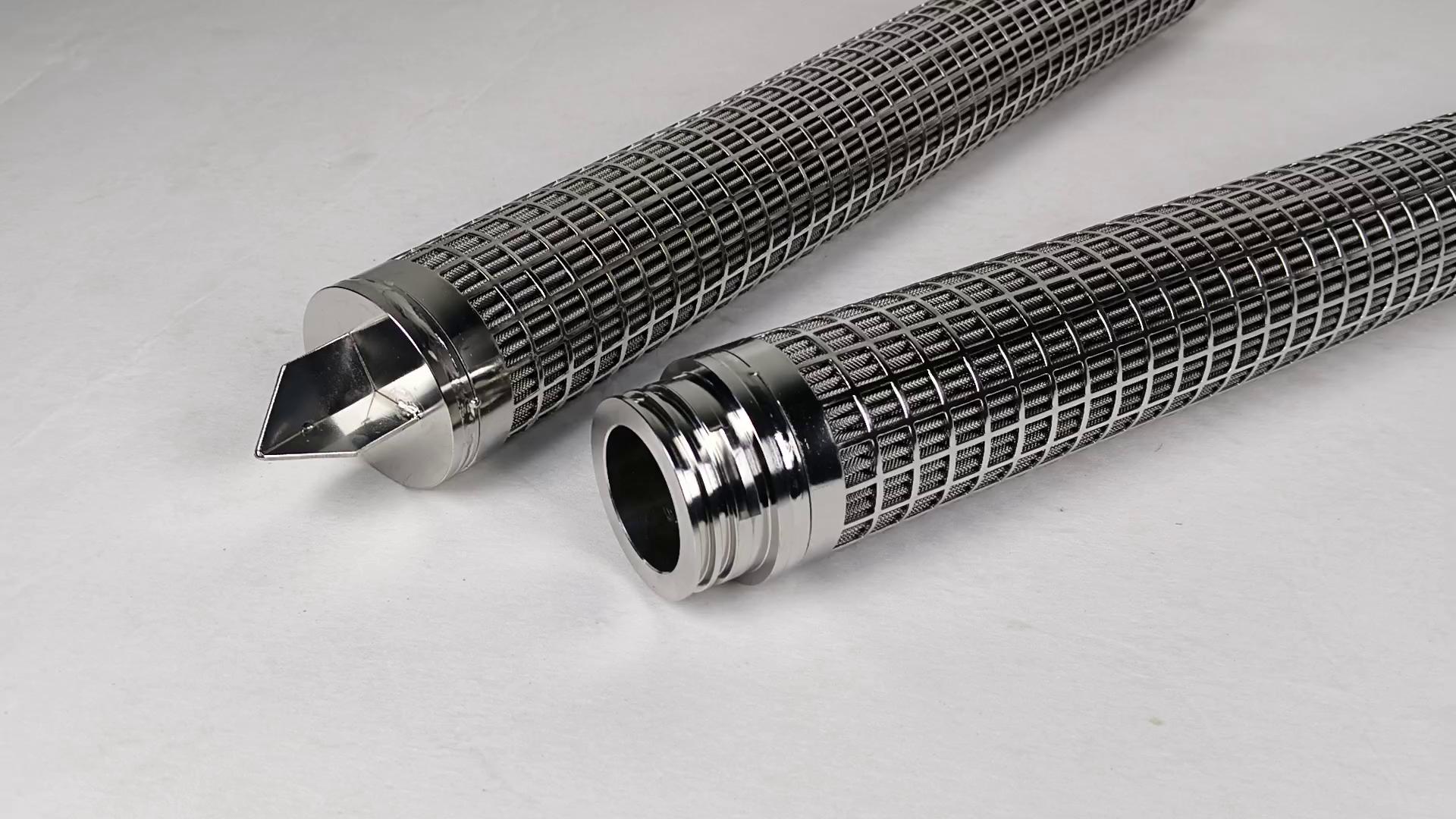

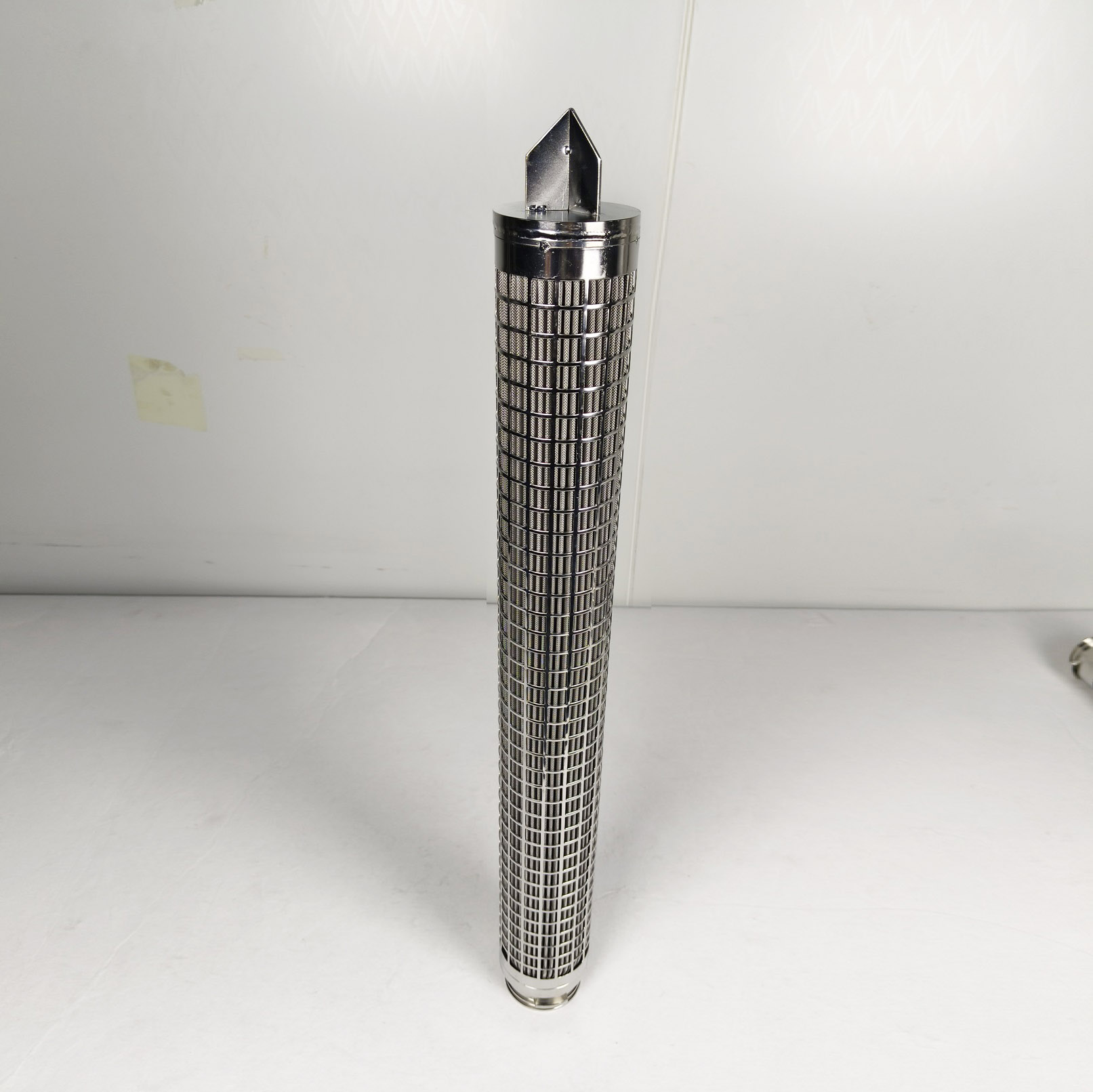

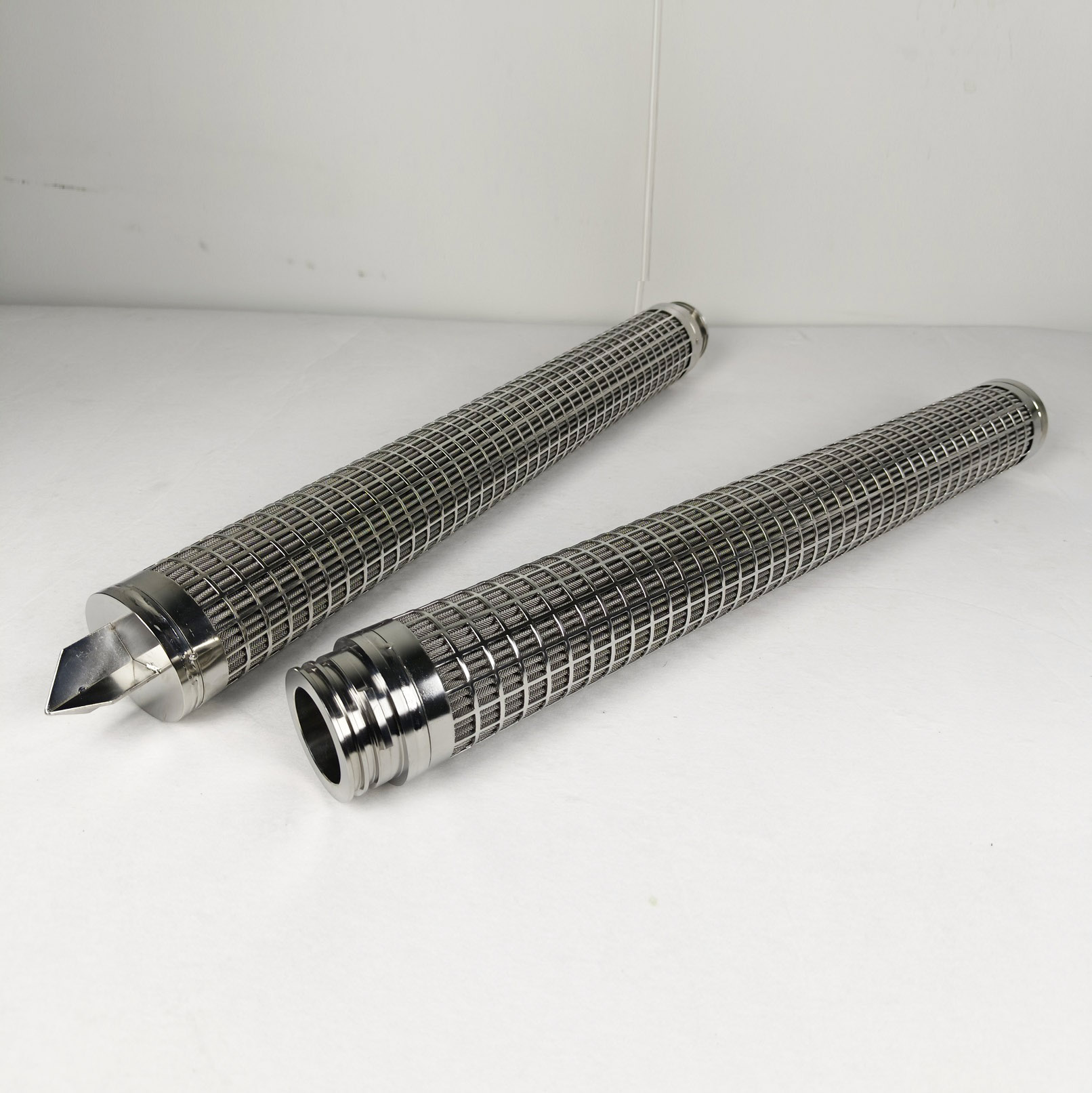

RT-167 recycled plastics industry melt filter element

RT-167 recycled plastics industry melt filter element

Continuous Polymer Filter (CPF) is a device used to filter impurities during polymer extrusion, mainly used in plastics and chemical fiber industries. Its working principle is based on continuous cleaning or replacement of filter media, thereby ensuring a continuous filtration process to ensure product quality and production efficiency. The following are the key features and principles of CPF:

Features and Advantages of CPF

Continuous Filtration: The design of CPF allows the filter media to operate continuously without stopping for cleaning or replacement. This continuity greatly improves the efficiency of the production line and is suitable for long-term uninterrupted production.

High-efficiency filtration: When processing polymers, CPF can effectively filter out impurities in the polymer, such as gels, unmelted particles, fibers and other solid impurities, thereby ensuring the purity and uniformity of the product.

Self-cleaning mechanism: CPF usually comes with an automatic cleaning or backwashing system that can remove accumulated impurities without affecting the filtration effect, thereby extending the life of the filter media.

Low energy consumption and high stability: Since there is no need for frequent shutdowns and cleaning, CPF can reduce energy consumption and provide stable filtration effects during the production process, suitable for large-scale production.

Reduced waste: The continuity and stability of CPF can reduce waste generated by downtime, cleaning and filter replacement, further improving material utilization and cost efficiency.

How CPF works

The core of CPF is the filter screen or filter element, which pressurizes the polymer melt through the filter medium. Common CPF types include:

Spin filter: The filter element in the filter can rotate to discharge impurities while allowing the clean melt to continue to flow.

Back pressure control system: By adjusting the back pressure control, impurities in the filtration process are pushed to the cleaning area to keep the filter element clean.

Application of CPF

Plastic and resin production: In the plastic production process, CPF is used to remove impurities from the melt, especially suitable for the production of various polymers such as PP, PE, PVC, etc.

Chemical fiber production: In the production of chemical fibers (such as polyester and nylon), CPF is used to ensure the purity of the melt and the fiber quality of the product.

Processing of recycled materials: CPF is also widely used in plastic recycling to filter impurities in recycled polymers and ensure the quality of recycled materials.

CPF Maintenance

Although CPF reduces downtime, it still requires regular inspection and maintenance to ensure filtration effectiveness and production efficiency. This includes:

Regularly check the wear of the filter element.

Clean the filter components.

Ensure the backwash or cleaning system is operating properly.

Filter integrity test bench

A Filter Element Structural Integrity Test Bench is a specialized setup used to test the mechanical strength, durability, and filtration integrity of filter elements under controlled conditions. This bench simulates real-world operational stresses, ensuring that filter elements meet necessary performance standards before being deployed in industrial applications, such as polymer processing, water filtration, and chemical processing.

Here's a breakdown of the key aspects of a Filter Element Structural Integrity Test Bench:

1. Purpose

• The test bench evaluates whether a filter element can maintain its structural integrity under different conditions, including high pressures, temperatures, and flow rates.

• It checks for leakage, burst strength, collapse pressure, and overall durability of the filter element.

• The goal is to ensure that the filter can withstand operational stresses without failure, which is crucial for applications where a compromised filter could lead to equipment damage, contamination, or process interruptions.

2. Key Test Parameters

• Burst Pressure: The maximum pressure the filter can withstand before bursting. This test is vital for filters in high-pressure environments.

• Collapse Pressure: Ensures the filter can endure pressures without collapsing inward. This is crucial for filters exposed to high vacuum or suction forces.

• Temperature Tolerance: Tests filter performance under elevated or fluctuating temperatures.

• Flow Rate and Differential Pressure: Measures the filter's ability to handle specific flow rates and pressure drops, helping assess how it performs under operating flow conditions.

• Leakage and Bypass: Ensures that contaminants do not bypass the filter media, which would compromise filtration effectiveness.

3. Construction of a Test Bench

• The test bench typically includes:

  • Pressure and Temperature Control Systems: Allows simulation of high-pressure and high-temperature environments to test filter performance under extreme conditions.

  • Flow Meters and Pressure Sensors: Measure the flow rate and differential pressure across the filter element to evaluate its resistance and integrity.

  • Burst and Collapse Test Chambers: Special chambers where the filter is subjected to increasing pressures until it bursts or collapses, determining its maximum capacity.

  • Data Acquisition System (DAS): Collects and records real-time data on temperature, pressure, and flow rate to analyze filter performance and integrity over time.

  • Leak Detection Mechanisms: Monitors for any bypass or leakage during testing.




4. Types of Tests Conducted

• Bubble Point Test: Assesses the largest pore size by pushing gas through the wetted filter until bubbles appear, indicating maximum pore pressure.

• Hydrostatic Testing: Determines the maximum pressure the filter can hold before rupture.

• Thermal Cycling: Subjects the filter to cycles of heating and cooling to test for thermal shock resistance.

• Pressure Hold Testing: The filter is subjected to a certain pressure for a set time to test for any structural weakness or slow leakage.

• Flow and Differential Pressure Testing: Measures how the filter handles varying flow rates and checks for changes in differential pressure that might indicate clogging or failure.

5. Applications

• Polymer and Chemical Processing: For filters used in extreme conditions, ensuring no rupture or collapse under high temperatures and pressures.

• Water and Wastewater Treatment: Testing filters for stability under continuous operation to prevent contamination bypass.

• Aerospace and Automotive: Testing fuel, oil, and air filters for structural integrity under high-stress conditions to ensure reliability.

• Food and Beverage Processing: Ensuring filters can handle sterilization processes without structural degradation.

6. Benefits of Using a Filter Integrity Test Bench

• Safety Assurance: Verifies that filters meet strict safety standards to prevent contamination or failure in critical applications.

• Quality Control: Helps manufacturers ensure that each filter meets design specifications and quality requirements before market release.

• Operational Reliability: Provides end-users with confidence that filters will perform as expected, reducing downtime and maintenance.

• Cost Savings: Avoids the need for costly replacements and repairs by identifying weak filters early in the production process.

7. Data Analysis and Reporting

• The data collected from the test bench can be analyzed to assess:

  • Failure Points: Identifying the conditions under which the filter fails, which is useful for improving design and material selection.

  • Performance Under Stress: How the filter performs under various pressures, temperatures, and flow conditions.

  • Consistency Across Batches: Helps maintain quality control by comparing test results across batches of filters.




8. Customization of the Test Bench

• The test bench can be customized to simulate the specific conditions expected in different industrial applications.

• Various adapters, connectors, and chambers can be included to accommodate a range of filter sizes, shapes, and specifications.
