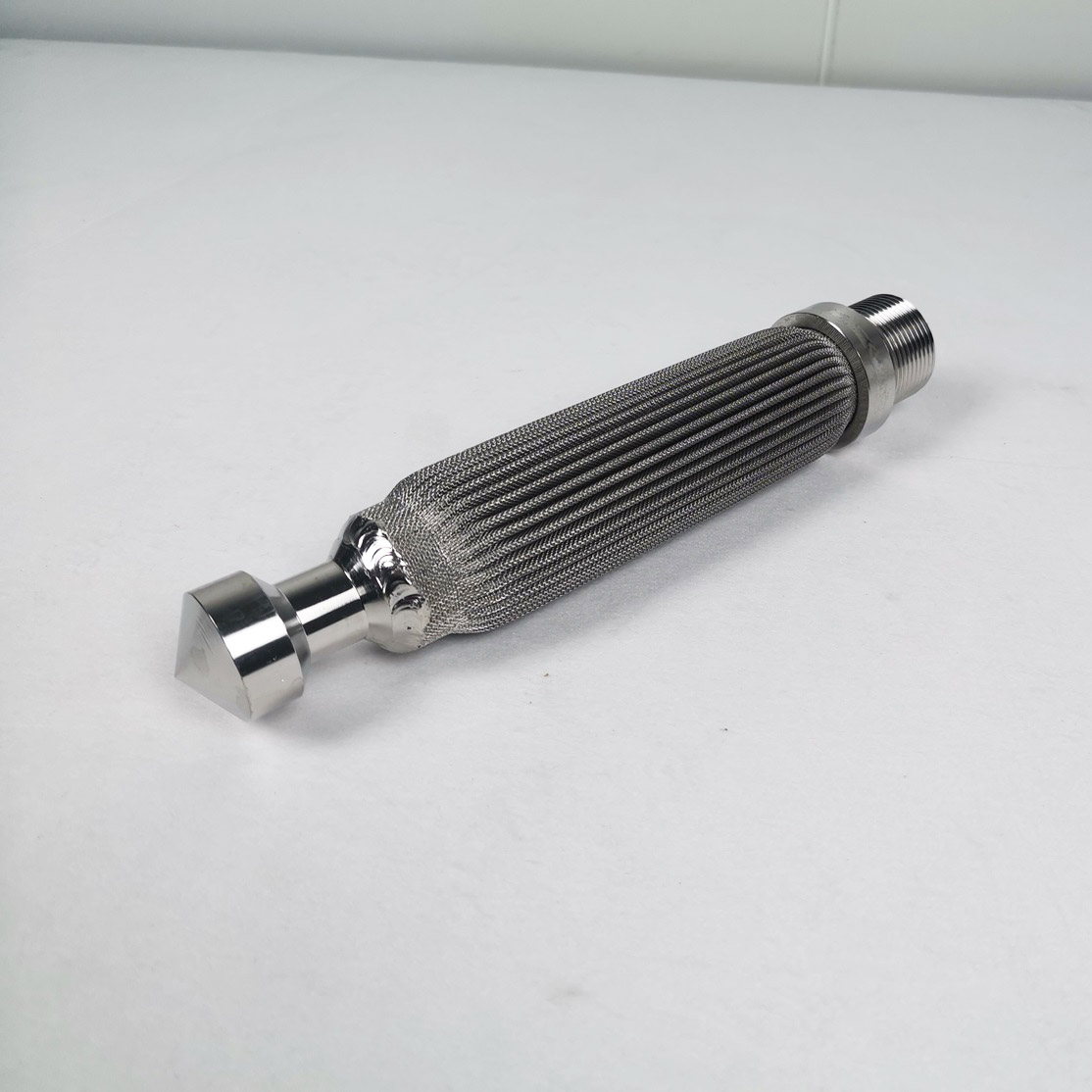

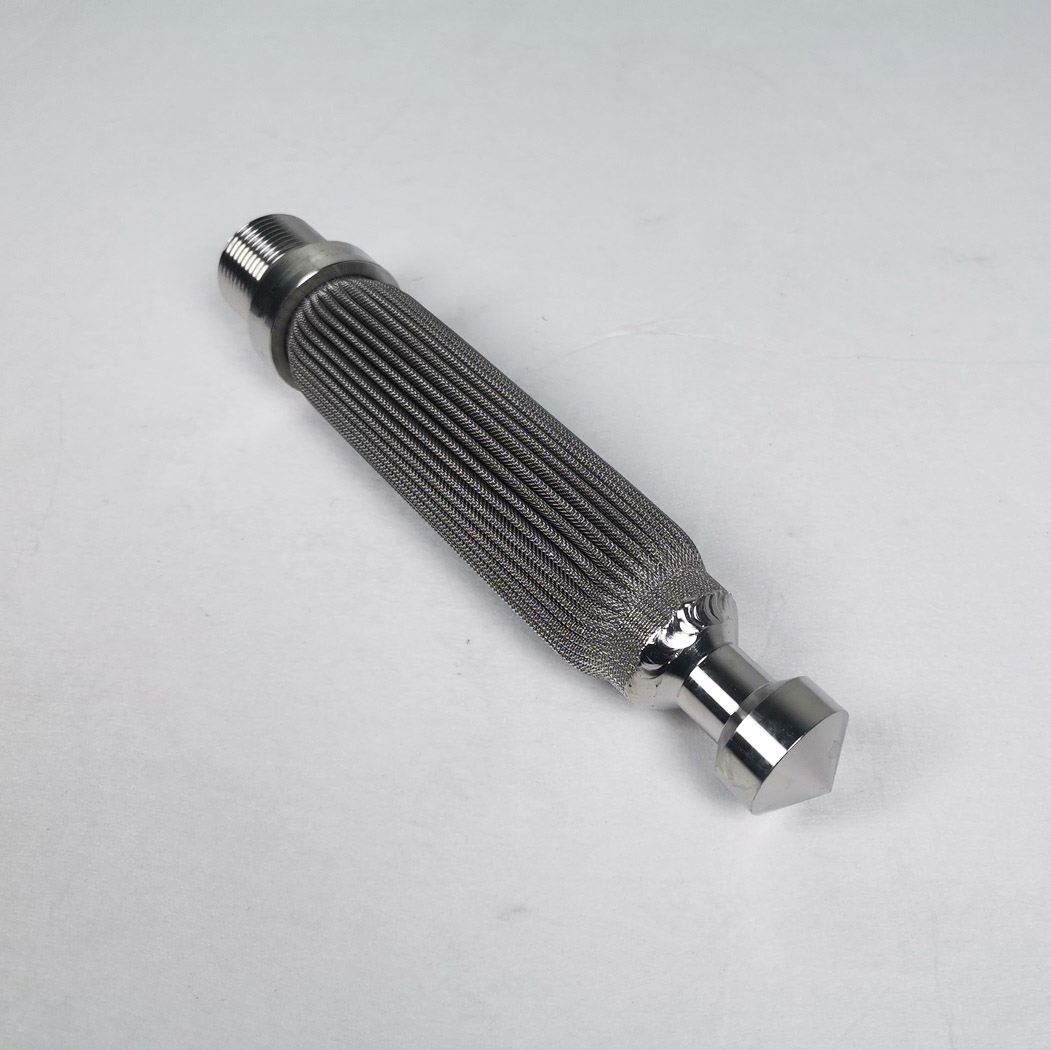

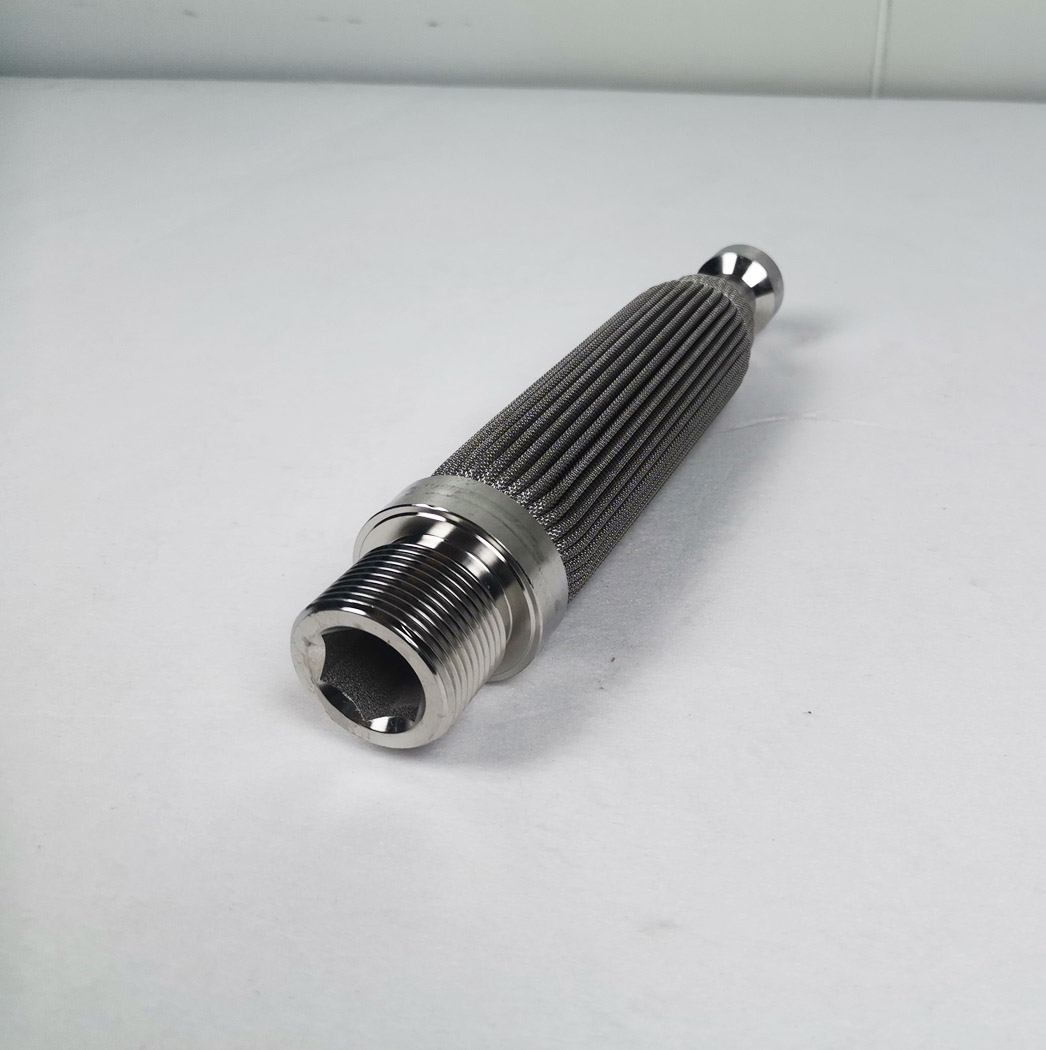

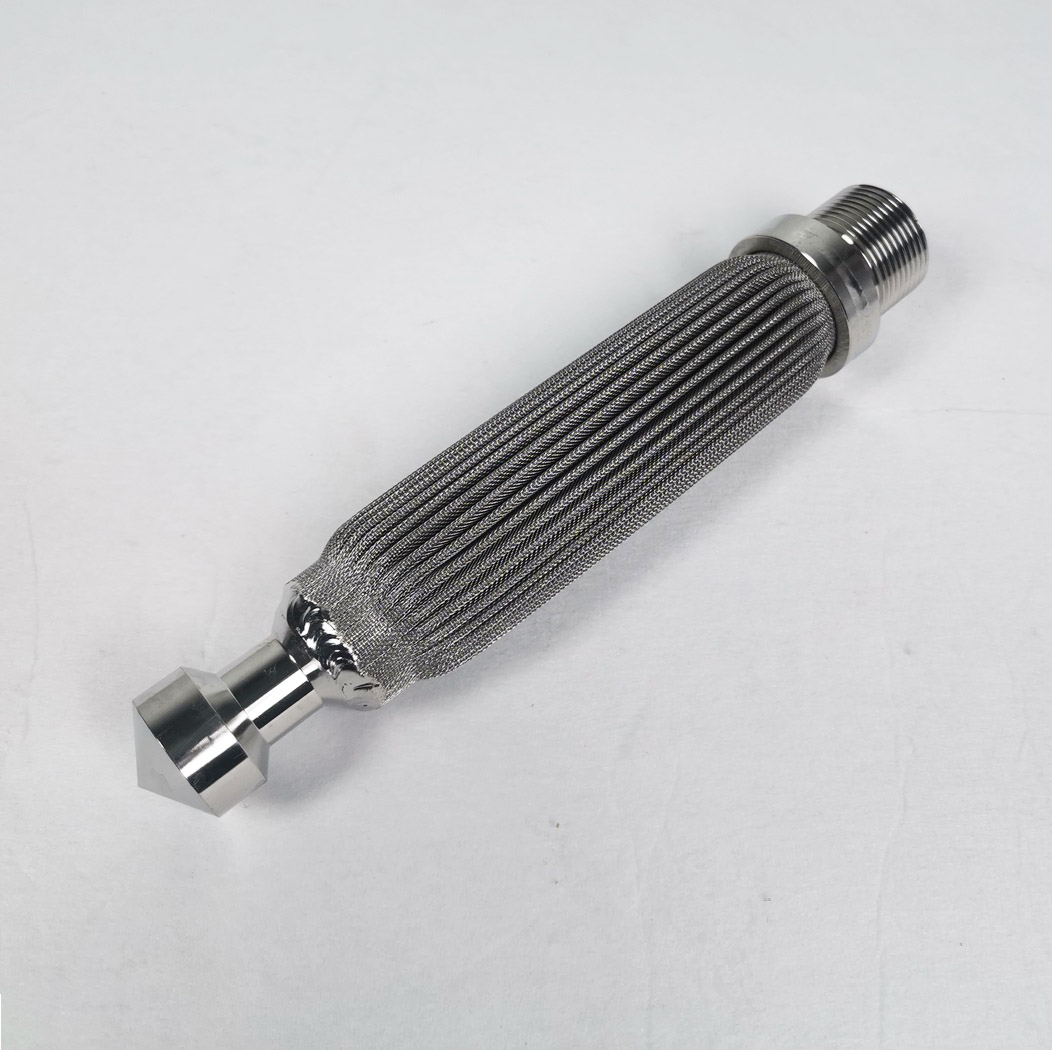

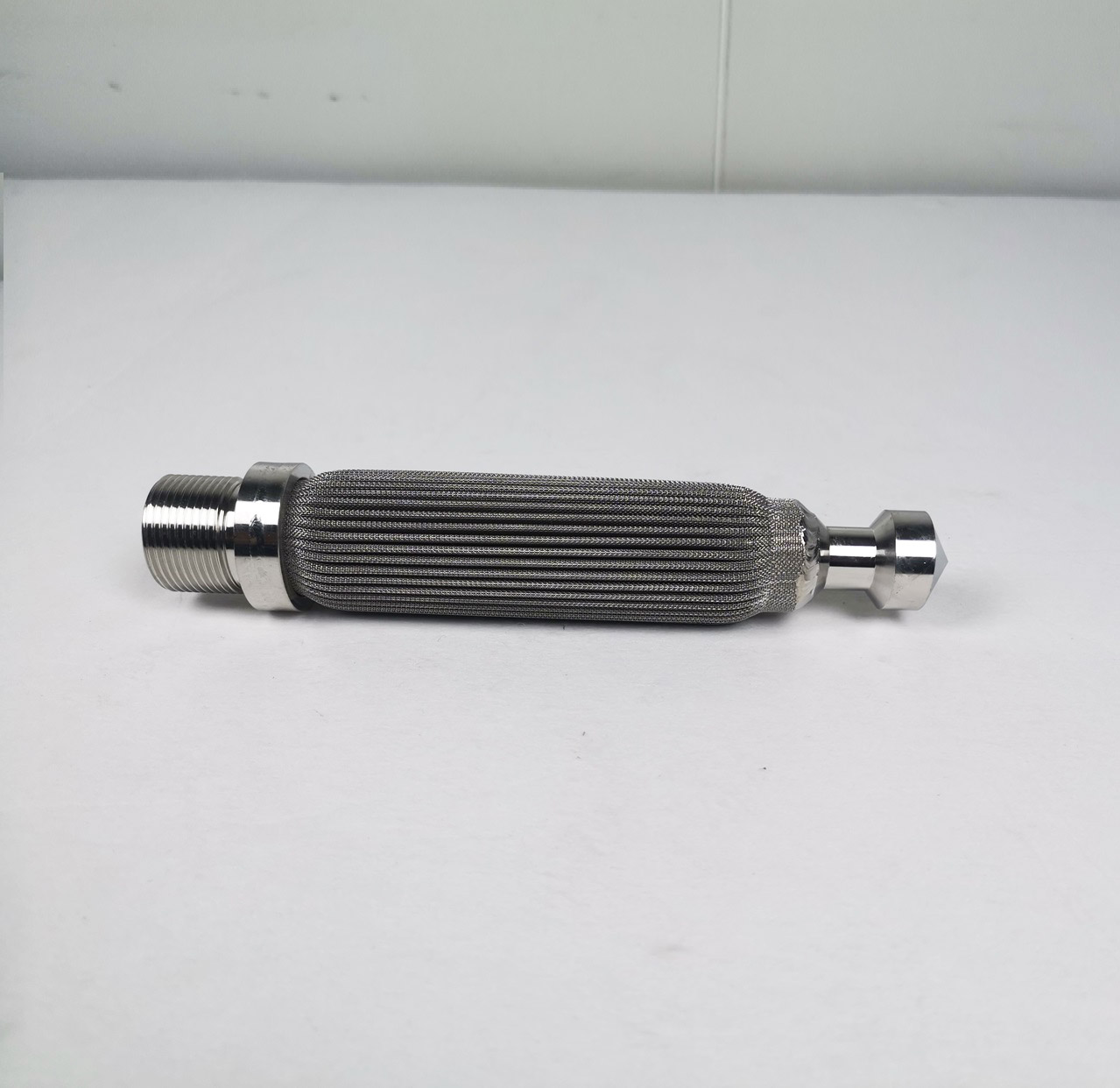

RT-146 CPF(Continuous Polymer Filter) metal sintered mesh filter

RT-146 CPF(Continuous Polymer Filter) metal sintered mesh filter

A stainless steel melt filtration element is a specialized filter component used in industries like polymer processing, plastic recycling, and chemical production to remove impurities from molten materials. Built to withstand high temperatures and pressures, these filters ensure that the polymer melt is free from contaminants, enhancing the quality and consistency of end products.

1. Purpose of Stainless Steel Melt Filtration Elements

• These filtration elements are designed to purify molten materials by capturing contaminants such as degraded polymers, gels, metal particles, dirt, and other impurities.

• They help maintain the integrity and quality of the melt, ensuring a consistent, defect-free end product in applications like extrusion, molding, and fiber production.

2. Construction and Materials

• Stainless Steel Grades: Typically made from high-grade stainless steel, such as 304, 316, or 316L, which are resistant to high temperatures and corrosion.

• Structure: The filtration element often consists of sintered stainless steel powder, woven wire mesh, or perforated metal sheets that provide the necessary pore size for filtration.

• Multi-layer Filtration: Stainless steel elements may feature multiple layers for improved filtration efficiency, capturing contaminants at different levels within the element.

3. Key Features

• High Temperature and Pressure Resistance: Stainless steel withstands the extreme conditions of melt filtration, often handling temperatures exceeding 300°C and high pressures.

• Corrosion and Chemical Resistance: Resistant to most chemicals in polymer melts, stainless steel filtration elements maintain durability and stability in various harsh environments.

• Strength and Structural Integrity: The robust construction of these elements prevents deformation or collapse under high-pressure flows.

• Reusability and Easy Cleaning: Stainless steel melt filtration elements are designed to be reusable, which is beneficial for reducing operational costs.

4. Filtration Performance

• Available in a range of micron ratings (typically from 1 to 200 microns) to meet specific purity requirements for different applications.

• Depth Filtration: Some stainless steel elements are designed to provide depth filtration, trapping contaminants throughout the filter media rather than just on the surface.

5. Applications of Stainless Steel Melt Filtration Elements

• Polymer Extrusion and Injection Molding: Essential in producing films, fibers, and molded plastic parts, where contamination-free melts are critical.

• Plastic and Polymer Recycling: Filters out contaminants from recycled polymers to ensure high-quality output for new products.

• Chemical Processing: Suitable for removing impurities from molten chemicals and ensuring consistent product quality.

• Food and Beverage Packaging: Used in food-safe plastic production where purity and cleanliness are critical.

• Fiber and Textile Manufacturing: In synthetic fiber production, these filters ensure that the melt is free of impurities, preventing defects in fibers.

6. Cleaning and Maintenance

• Backflushing: A reverse flow can be used to dislodge particles from the filter surface, restoring flow capacity.

• Chemical Cleaning: Solvents compatible with stainless steel can dissolve or remove contaminants.

• Ultrasonic Cleaning: Effective for deep cleaning by using ultrasonic waves to remove particles lodged within the filter’s pores.

• Reusable stainless steel filters reduce waste and operational costs, especially in high-volume applications.

7. Selecting the Right Stainless Steel Melt Filtration Element

• Pore Size and Micron Rating: Choose a filtration element with a pore size that matches the required purity of the melt.

• Compatibility: Ensure that the stainless steel grade is suitable for the specific chemicals, temperatures, and pressures involved.

• Flow Rate and Pressure Drop: Consider the element’s impact on flow rate and pressure; an optimal filter will provide effective filtration without restricting flow excessively.

8. Benefits in Melt Filtration

• Enhanced Product Quality: By filtering out contaminants, stainless steel elements help achieve uniform, high-quality products with fewer defects.

• Cost Savings: Reusable and durable, these elements reduce the need for frequent replacement, which saves costs over time.

• Environmentally Friendly: Their reusability lowers waste production, making them a sustainable choice for high-volume filtration.

Filter integrity test bench

A Filter Element Structural Integrity Test Bench is a specialized setup used to test the mechanical strength, durability, and filtration integrity of filter elements under controlled conditions. This bench simulates real-world operational stresses, ensuring that filter elements meet necessary performance standards before being deployed in industrial applications, such as polymer processing, water filtration, and chemical processing.

Here's a breakdown of the key aspects of a Filter Element Structural Integrity Test Bench:

1. Purpose

• The test bench evaluates whether a filter element can maintain its structural integrity under different conditions, including high pressures, temperatures, and flow rates.

• It checks for leakage, burst strength, collapse pressure, and overall durability of the filter element.

• The goal is to ensure that the filter can withstand operational stresses without failure, which is crucial for applications where a compromised filter could lead to equipment damage, contamination, or process interruptions.

2. Key Test Parameters

• Burst Pressure: The maximum pressure the filter can withstand before bursting. This test is vital for filters in high-pressure environments.

• Collapse Pressure: Ensures the filter can endure pressures without collapsing inward. This is crucial for filters exposed to high vacuum or suction forces.

• Temperature Tolerance: Tests filter performance under elevated or fluctuating temperatures.

• Flow Rate and Differential Pressure: Measures the filter's ability to handle specific flow rates and pressure drops, helping assess how it performs under operating flow conditions.

• Leakage and Bypass: Ensures that contaminants do not bypass the filter media, which would compromise filtration effectiveness.

3. Construction of a Test Bench

• The test bench typically includes:

  • Pressure and Temperature Control Systems: Allows simulation of high-pressure and high-temperature environments to test filter performance under extreme conditions.

  • Flow Meters and Pressure Sensors: Measure the flow rate and differential pressure across the filter element to evaluate its resistance and integrity.

  • Burst and Collapse Test Chambers: Special chambers where the filter is subjected to increasing pressures until it bursts or collapses, determining its maximum capacity.

  • Data Acquisition System (DAS): Collects and records real-time data on temperature, pressure, and flow rate to analyze filter performance and integrity over time.

  • Leak Detection Mechanisms: Monitors for any bypass or leakage during testing.




4. Types of Tests Conducted

• Bubble Point Test: Assesses the largest pore size by pushing gas through the wetted filter until bubbles appear, indicating maximum pore pressure.

• Hydrostatic Testing: Determines the maximum pressure the filter can hold before rupture.

• Thermal Cycling: Subjects the filter to cycles of heating and cooling to test for thermal shock resistance.

• Pressure Hold Testing: The filter is subjected to a certain pressure for a set time to test for any structural weakness or slow leakage.

• Flow and Differential Pressure Testing: Measures how the filter handles varying flow rates and checks for changes in differential pressure that might indicate clogging or failure.

5. Applications

• Polymer and Chemical Processing: For filters used in extreme conditions, ensuring no rupture or collapse under high temperatures and pressures.

• Water and Wastewater Treatment: Testing filters for stability under continuous operation to prevent contamination bypass.

• Aerospace and Automotive: Testing fuel, oil, and air filters for structural integrity under high-stress conditions to ensure reliability.

• Food and Beverage Processing: Ensuring filters can handle sterilization processes without structural degradation.

6. Benefits of Using a Filter Integrity Test Bench

• Safety Assurance: Verifies that filters meet strict safety standards to prevent contamination or failure in critical applications.

• Quality Control: Helps manufacturers ensure that each filter meets design specifications and quality requirements before market release.

• Operational Reliability: Provides end-users with confidence that filters will perform as expected, reducing downtime and maintenance.

• Cost Savings: Avoids the need for costly replacements and repairs by identifying weak filters early in the production process.

7. Data Analysis and Reporting

• The data collected from the test bench can be analyzed to assess:

  • Failure Points: Identifying the conditions under which the filter fails, which is useful for improving design and material selection.

  • Performance Under Stress: How the filter performs under various pressures, temperatures, and flow conditions.

  • Consistency Across Batches: Helps maintain quality control by comparing test results across batches of filters.




8. Customization of the Test Bench

• The test bench can be customized to simulate the specific conditions expected in different industrial applications.

• Various adapters, connectors, and chambers can be included to accommodate a range of filter sizes, shapes, and specifications.

Comparison table of sieve mesh and aperture
