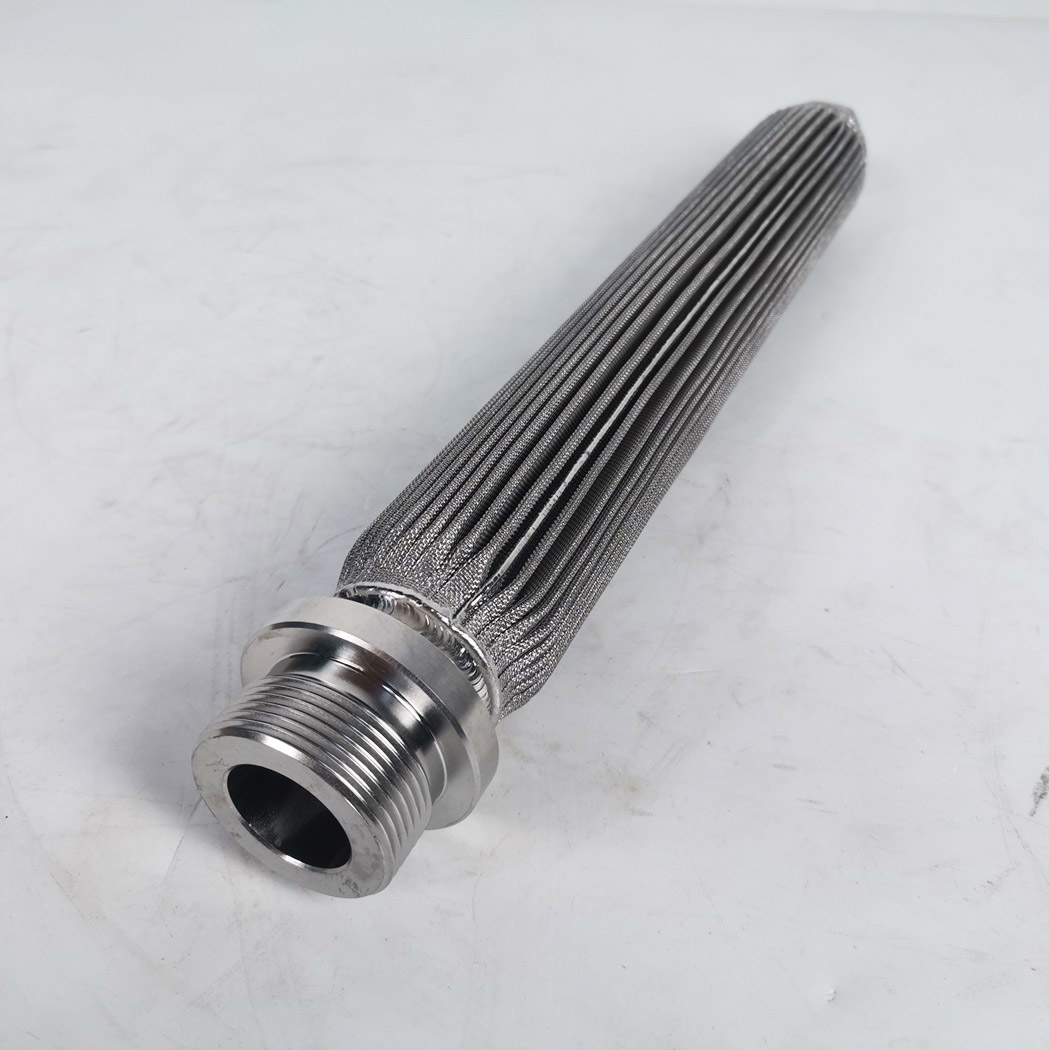

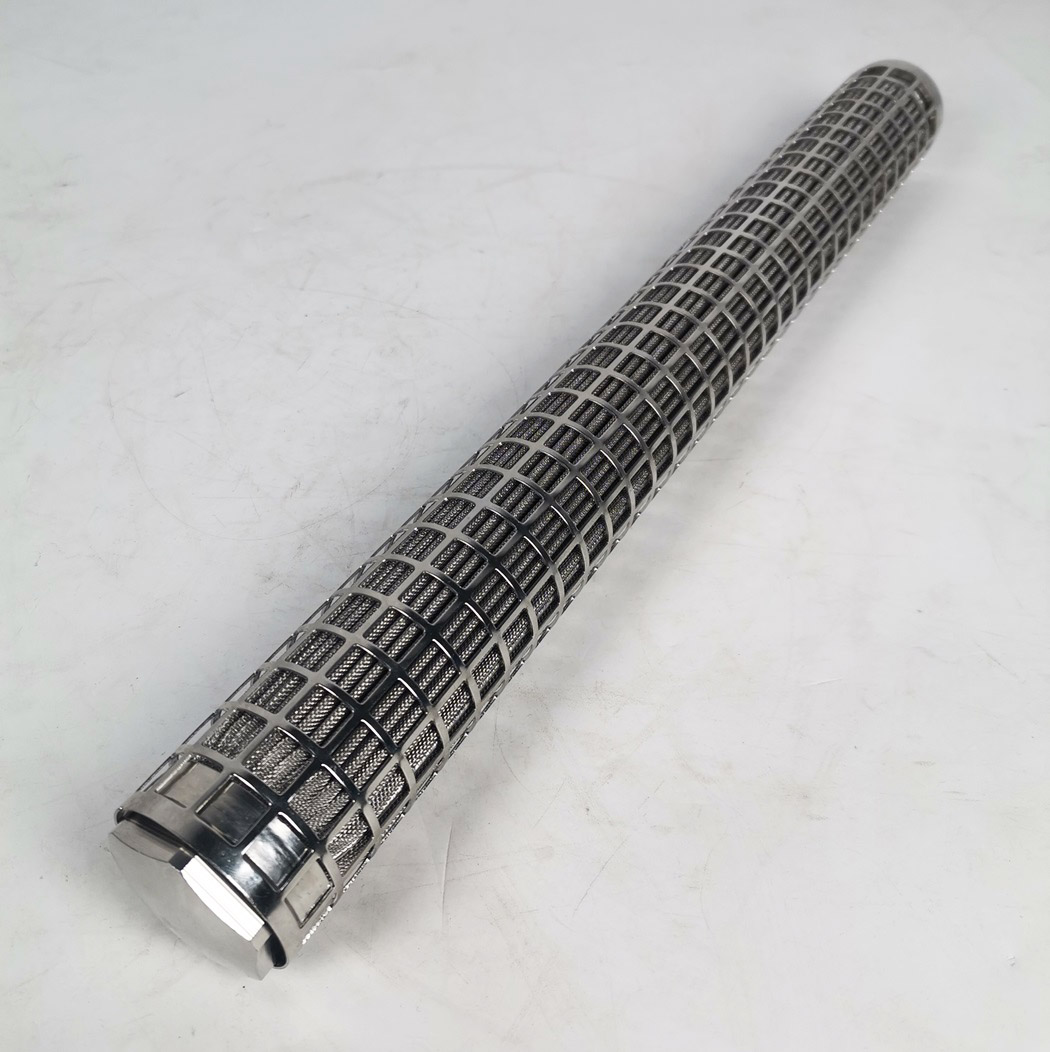

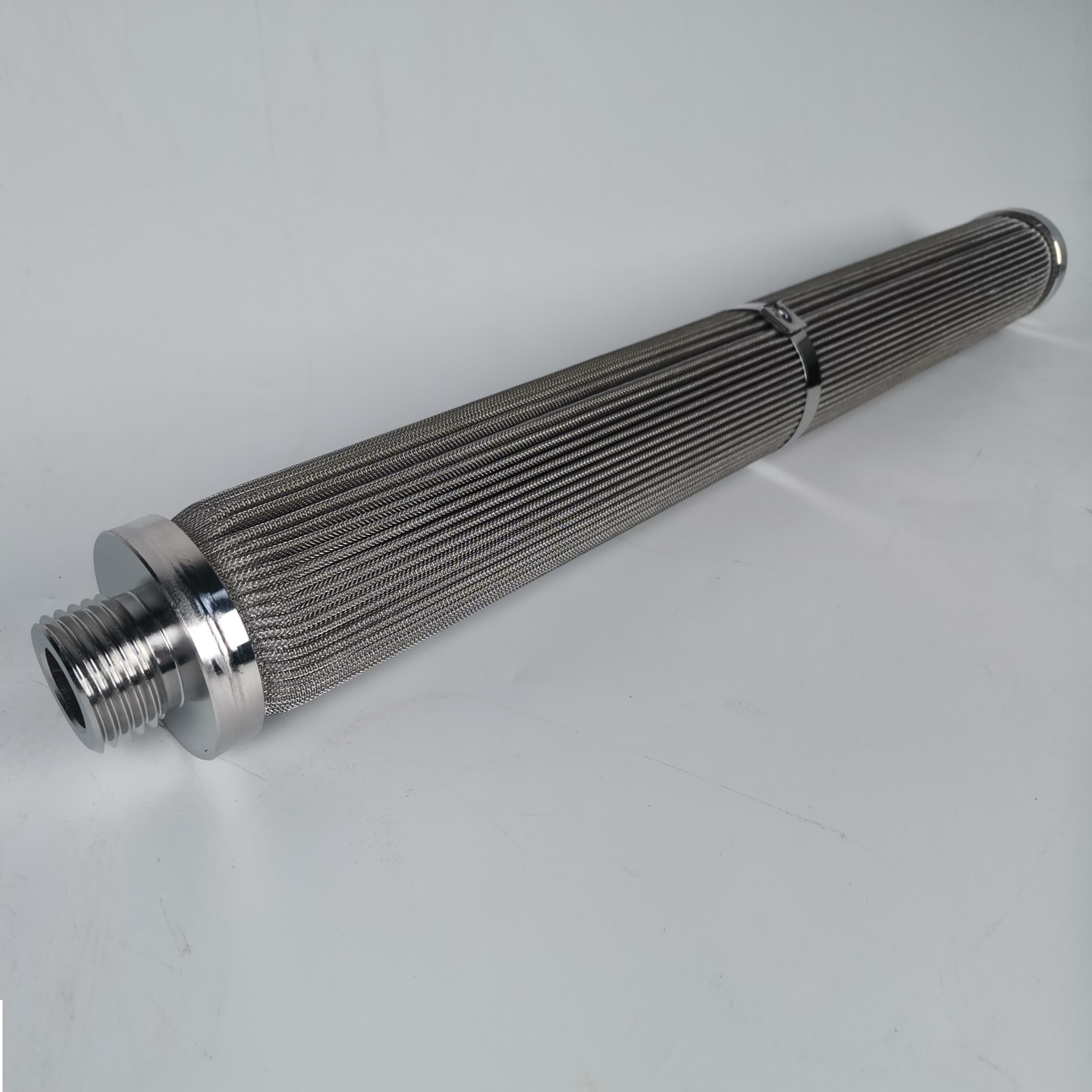

Recycled plastics industry melt filter element

In the recycled plastics industry, a melt filter element is a critical component used in the process of plastic extrusion, where recycled plastics are melted down and reshaped. This filter removes impurities and contaminants from the melted plastic before it is reshaped, ensuring a higher quality of the final recycled product. Here’s an overview of how melt filter elements work and their importance in this industry:

1. Purpose of Melt Filter Elements

• Filtration of Contaminants: These elements filter out impurities such as dirt, paper, metal particles, and other non-plastic residues that may be mixed in with the recycled plastic feedstock.

• Improvement of Product Quality: By filtering out contaminants, melt filter elements help produce a purer and more consistent plastic output, improving the physical and aesthetic quality of recycled plastic products.

• Protection of Machinery: The filtering process prevents damage to extrusion equipment, which can be caused by contaminants, thus extending the lifespan of the machinery.

2. Types of Melt Filter Elements

• Screen Pack Filters: These are simple layered screen filters often used for lighter filtration needs. They provide a basic level of contaminant removal and are suitable for less contaminated recycled materials.

• Continuous Belt Filters: These systems provide continuous filtration without requiring the process to stop for cleaning. They are more efficient for heavily contaminated plastics as the belt continuously moves to refresh the filtration surface.

• Rotary Filtration Systems: In rotary systems, a rotating filter element traps contaminants and moves them away from the melt flow, allowing for consistent filtration and minimizing pressure drops.

• Backflush Filters: These systems are self-cleaning and utilize a backflush mechanism to remove contaminants without stopping production, which is particularly useful in high-volume operations.

3. Key Materials and Specifications

• Melt filter elements are typically made from durable metals like stainless steel or nickel alloys to withstand the high temperatures and pressures involved in plastic extrusion.

• Micron Ratings: The filtration capability of these elements is often specified by a micron rating, indicating the smallest particle size they can remove.

• Temperature and Pressure Resistance: Filters must withstand the high temperatures (typically 200-300°C) and pressures required to melt and push plastic through the extrusion system.

4. Advantages in Recycling

• Enhanced Efficiency: By removing contaminants effectively, these filters reduce waste and energy consumption, making the recycling process more efficient.

• Higher Recycled Plastic Value: Cleaner recycled plastic has a higher resale value and can be used in a wider range of applications, adding to the sustainability of the recycling process.

5. Maintenance and Replacement

• Over time, melt filter elements become clogged and need cleaning or replacement. The specific maintenance schedule depends on the contamination level of the plastics and the filtration system used.

• Regular maintenance and monitoring of pressure differentials across the filter element are essential to maintain consistent production quality and avoid equipment issues.
